PVC-U Pressure pipes
Pro Water Rwanda Ltd supplies PVC-U pressure pipes engineered for reliability, durability, and safe water conveyance. Made from unplasticized polyvinyl chloride (PVC-U), these pipes are lightweight, corrosion-resistant, and ideal for water supply, irrigation, and drainage systems.
- Material: Unplasticised Polyvinyl Chloride (PVC-U)
- Minimum Required Strength (MRS): Varies by standard (e.g., typically around 25 MPa for specific grades)
- Hydrostatic Design Basis (HDB): 27.6 MPa (4000 psi) or 26.4 MPa (3830 psi) @ 23°C (73°F)
- Allowable Compressive Strength: 60 – 80 MPa
- Tensile Strength at Yield: 40 – 55 MPa
- Elongation at Break: 10 – 50% (rigid material)
- Modulus of Elasticity (Tensile): ~3000 – 3300 MPa
- Flexural Modulus: ~2700 – 4000 MPa
- Poisson’s Ratio: 0.38 – 0.41
- Thermal Expansion Coefficient: 7 to 8 × 10⁻⁵ °C⁻¹
- Pressure Ratings: Various PN ratings (PN6 to PN25) or Schedule 40/80 ratings
- Available Diameters: 10 mm up to 300 mm+
Dimensions: From 20mm, 25, 40, 50, 63, 75, 90, 110, 125, 140, 160, 180 up to 200mm in All PN: From Pn-4,10,16,20 and Pn-25 For all Dimensions.
- Reliable supply and delivery across Rwanda.
- On-site technical and installation guidance.
- Dedicated after-sales and customer service team.
- Wide network of distributors for faster access.
- Consistent quality and support for every project size.
- Easy to handle, transport, and install
- Highly corrosion and abrasion resistant
- Weatherproof for underground applications
- Maintains water taste and quality — safe for drinking water
- Withstands high impact and underground movement without cracking
- Excellent surface hardness and tensile strength with a high safety coefficient.
- Superior anti-aging performance with a lifespan of over 50 years.
- Strong corrosion resistance to inorganic acids, alkalis, and salts — ideal for industrial sewage transport.
- Smooth inner surface ensures low friction and steady water flow without blockage.
- High oxygen index and self-extinguishing performance for improved fire safety.
- Low thermal expansion coefficient — minimal deformation under temperature changes.
- Easy installation using adhesive joints; lightweight and simple to handle.
| Dn | S20 SDR41 PN5 | S16.7 SDR34.4 PN6 | S16 SDR33 PN6.3 | S12.5 SDR26 PN8 | S10 SDR21 PN10 | S8 SDR17 PN12.5 | S6.3 SDR13.6 PN16 | S6.3 SDR13.6 PN20 | S4 SDR9 PN25 |
|---|---|---|---|---|---|---|---|---|---|
| 10.00 | 1.50 | ||||||||
| 12.00 | 1.50 | ||||||||
| 16.00 | 1.50 | 1.80 | |||||||
| 20.00 | 1.50 | 2.30 | |||||||
| 25.00 | 2.80 | ||||||||
| 32.00 | 1.60 | 1.90 | 2.40 | 3.60 | |||||
| 40.00 | 1.50 | 1.60 | 1.90 | 2.40 | 3.00 | 4.50 | |||
| 50.00 | 1.60 | 2.00 | 2.40 | 3.00 | 3.70 | 5.60 | |||
| 63.00 | 1.60 | 1.90 | 2.00 | 2.50 | 3.00 | 3.80 | 4.70 | 7.10 | |
| 75.00 | 1.90 | 2.20 | 2.30 | 2.90 | 3.60 | 4.50 | 5.60 | 8.40 | |
| 90.00 | 2.20 | 2.70 | 2.80 | 3.50 | 4.30 | 5.40 | 6.70 | 10.10 | |
| 110.00 | 2.70 | 3.40 | 4.20 | 5.30 | 6.60 | 8.10 | 10.00 | ||
| 125.00 | 3.10 | 3.90 | 4.80 | 6.00 | 7.40 | 9.20 | 11.40 | ||
| 140.00 | 3.50 | 4.30 | 5.40 | 6.70 | 8.30 | 10.30 | 12.70 | ||
| 160.00 | 4.00 | 4.90 | 6.20 | 7.70 | 9.50 | 11.80 | 14.60 | ||
| 180.00 | 4.40 | 5.50 | 6.90 | 8.60 | 10.70 | 13.30 | 16.40 | ||
| 200.00 | 4.90 | 6.20 | 7.70 | 9.60 | 11.90 | 14.70 | 18.20 | ||
| 225.00 | 5.50 | 6.90 | 8.60 | 10.80 | 13.40 | 16.60 | |||
| 250.00 | 6.20 | 7.70 | 9.60 | 11.90 | 14.80 | 18.40 | |||
| 280.00 | 6.90 | 8.60 | 10.70 | 13.40 | 16.60 | 20.60 | |||
| 315.00 | 7.70 | 9.70 | 12.10 | 15.00 | 18.70 | 23.20 | |||
| 355.00 | 8.70 | 10.90 | 13.60 | 16.90 | 21.10 | 26.10 | |||
| 400.00 | 9.80 | 12.30 | 15.30 | 19.10 | 23.70 | 29.40 | |||
| 450.00 | 11.00 | 13.80 | 17.20 | 21.50 | 26.70 | 33.10 | |||
| 500.00 | 12.30 | 15.30 | 19.10 | 23.90 | 29.70 | 36.80 | |||
| 560.00 | 13.70 | 17.20 | 21.40 | 26.70 | |||||
| 630.00 | 15.40 | 19.30 | 24.10 | 30.00 |

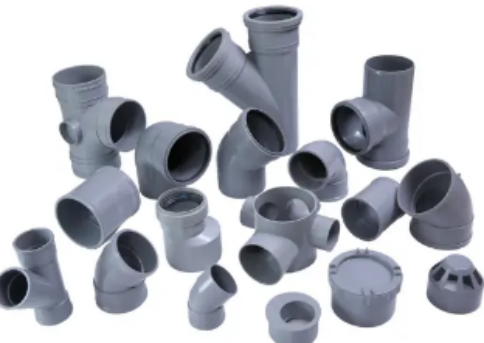

Coupling
Connects two straight lengths of PVC pipe for a continuous flow line.
45° Elbow
Changes pipe direction by 45 degrees, ideal for smooth flow turns.
Reducing Tee
Joins three pipes of different diameters, allowing size transition.
Reducing Coupling
Connects pipes of different diameters in a straight line.
95° Elbow
Changes the pipe direction by 90 degrees; commonly used in corners.
Equal Tee
Splits or combines flow into three equal-sized directions.
Flange
Provides easy connection between pipes, valves, or equipment.
Union
Allows quick disconnection of pipes without cutting; great for maintenance.
Cross Tee(Four-way Tee)
Connects four pipes at right angles for multiple flow directions.
PVC Elbow(Male/Female threads)
Threaded version of elbow used for easy screw connections.
PVC Socket
Joins two plain-end pipes using solvent cement or adhesive.
PVC Valve Socket
Used to attach a valve to the piping system securely.
PVC P/T Socket (Plain/Threaded)
Adapts from plain to threaded connection in one fitting.
PVC Tee ( Threaded )
T-shaped fitting with threaded ends for branching flow lines.
PVC Cross (Threaded)
Cross-type connector with four threaded ends for multi-line systems.
PVC End cap
Closes the end of a pipe to stop the flow.
PVC Female Adapter
Provides a threaded end for connection to male fittings or components.
PVC Ball Valve
Controls water flow with an easy-turn handle; used for shut-off points.
PVC vent or waste fitting
Used for drainage and venting in plumbing systems.
